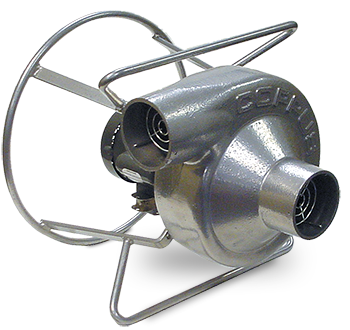

COPPUS Portavent®

Versatile Centrifugal Ventilator for Source Capture Fume Exhaust

The design, performance and versatility of the Portavent® centrifugal ventilator make it ideal for a wide range of industrial applications – welding and other fume removal; small tank; purging; equipment cooling; confined space ventilation; and other maintenance and safety applications.

Note: PV-500 & PV-750 special order only.

Features & Advantages:

  • Available in three models offering 560-940 cfm (951-1,597 m3/hr)
  • Direct-drive 3,500 RPM fan motor
  • Cast aluminum fan and housing provides spark-resistant construction
  • Unique, multi-position stand offers a variety of convenient set-ups
  • Accepts flexible duct at inlet and outlet ends
  • Backwardly inclined airfoil blades prevent motor overloads
  • Inlet and outlet screens meet OSHA standards
  • TE & EP motors available on all models
  • 84-90 dBA @ 5 ft (1.5 m)
Click me


Accessories:

  • 5 & 6” close pitch source capture duct
  • 5, 6, and 8” source capture hoods

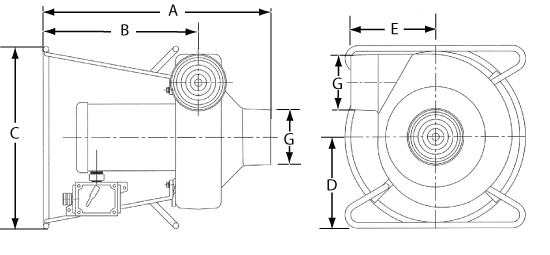

Dimensions:

Click me

× Popup Image
PHYSICAL DIMENSIONS
Portavent A B C D E F G Net Wt.
in mm in mm in mm in mm in mm in mm in mm lbs kg
PV-500 22.4 569 14.8 376 19.0 483 9.5 241 8.4 213 5.4 137 4.9 124 60 27
PV-750 22.9 582 15.6 396 19.0 483 9.5 241 9.3 236 5.9 150 5.9 150 72 32
PV-1000 22.9 582 15.6 396 19.0 483 9.5 241 9.3 236 5.9 150 5.9 150 73 33

Performance:

PERFORMANCE DATA THROUGH VARIOUS LENGTHS OF DUCT
Portavent Free Air 10 ft  (3 m) 20 ft  (6 m) 30 ft  (9 m) 50 ft  (15 m) Static                Pressure (WG) Duct Size
cfm m3/hr cfm m3/hr cfm m3/hr cfm m3/hr cfm m3/hr in mm in mm
PV-500 60 Hz 560 952 493 838 449 763 432 734 399 678 5.3 135 5.0 127
PV-750 815 1,385 728 1,237 695 1,181 665 1,130 629 1,070 8.5 216 6.0 152
PV-1000 940 1,597 819 1,391 781 1,327 752 1,278 701 1,191 7.0 178 6.0 152
PV-500 50 Hz 453 770 399 678 363 617 349 594 322 548 4.3 110 5.0 127
PV-750 659 1,120 588 1,000 562 955 538 914 509 865 6.9 176 6.0 152
PV-1000 759 1,290 661 1,124 631 1,072 607 1,032 566 962 5.7 145 6.0 152
FREE AIR DECIBEL LEVELS
PV-500 84 dBA
PV-750 87 dBA
PV-1000 90 dBA
